SNES/NES gamepad (and mouse) to USB adapter



The idea

When playing NES and SNES games with an emulator, nothing is better than using the original gamepads (and mouse).
SNES Adapter

SNES Adapter


Many people (including me) have been happy doing this with homebuilt parallel port adapters for years but unfortunately, parallel ports are becoming less common these days. USB is now the way to go for such devices so I decided to build my own NES/SNES gamepad to USB adapter. However, due to the way USB works, the adapter is a little more complicated.

Note: There is now a new version which supports up to 4 NES and/or SNES controllers at the same time.

goto top Up


News

goto top Up


Solution overview

I built my adapter using an ATmega8 microcontroller from Atmel. This microcontroller does not support USB in hardware so I used the software-only usb driver from Objective Development. This driver allows an AVR microcontroller such as the ATmega8 to talk USB with minimal external components. As a result, the interface can be built cheaply and easily, thanks to the low component count.

Depending on your skills, you may build the interface using breadboard and thru-hole components or the surface mount version, using the PCB artwork I provide. I also sell pre-assembled PCBs, and pre-programmed Atmega8 (dip package only).

No drivers required!
That's right, since the USB standard defines device classes. I'm using the human input device (HID) which allows me to tell to the computer that the connected USB device is a joystick and has 2 axis and 4 or 8 buttons. Another nice thing about this is that the adapter should work with all operating systems supporting HID devices. (I tested and it works at least on Win98, Win2K, WinXP and Linux)

goto top Up


Schematic

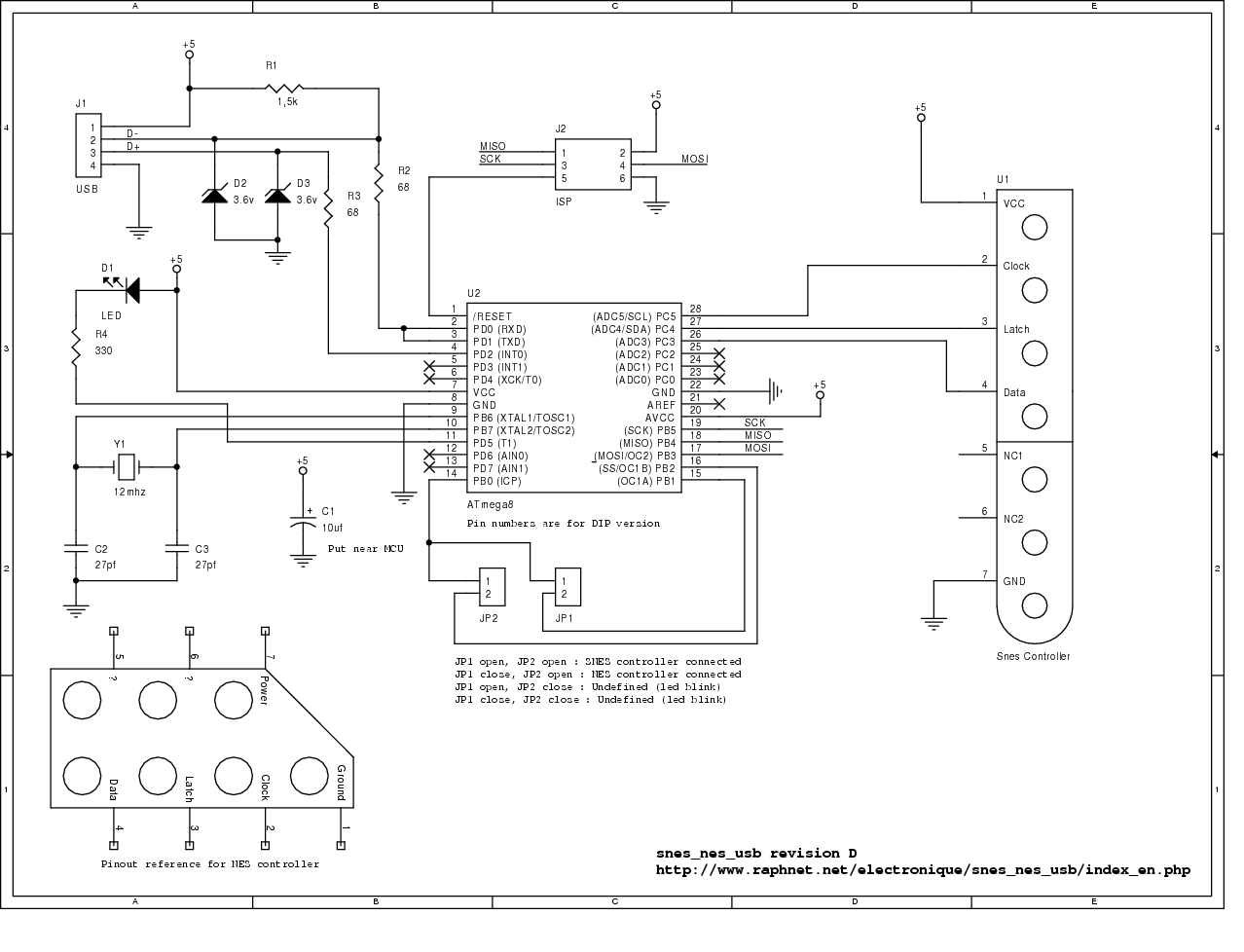

Here is the schematic:

A pdf version is also available (easier to look at and prints nicely):
sch-revD.pdf

Component list:
For the USB connection, just strip the USB cable and solder the wires directly to the board. USB uses standard wire colors:
Color Description
  Red +5 volts
  Black Ground
  Green D+
  White D-

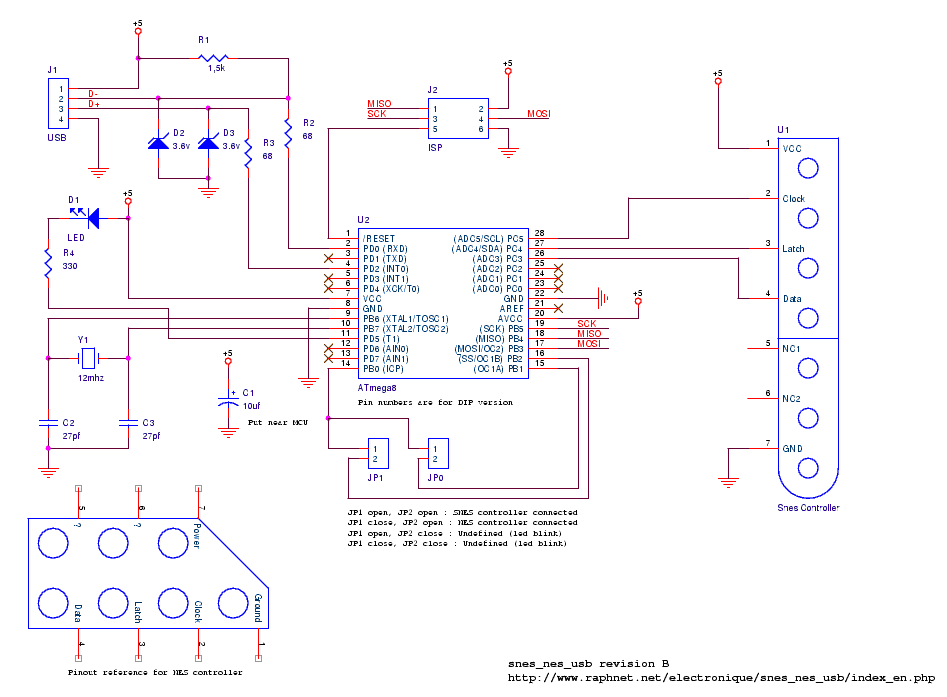

Previous schematic revisions:
schematic-revA.pdf
sch-revB.pdf

goto top Up


Famicom

Famicom II to USB

Famicom II to USB

Since release 1.9, the famicom controllers are supported. Well in fact, no changes were necessary for controller 1 since it is functionally identical to the NES version. Controller 2 however, is a different story. While it does not have start and select buttons, it adds a microphone! As requested by a customer, I implemented a new firmware for using this microphone as a butotn.

The lack of start and select buttons is not a problem (excluding that those buttons can be useful!), but the microphone required an additional input because it uses a separate wire.

First the clock, data and latch signals are wired to the circuit as you would a standard NES controller. Next the microphone output must be wired to the MCU PC2 pin. Then, to enable the special NES-Famicom microphone mode, PC1 and PC0 must be tied together.

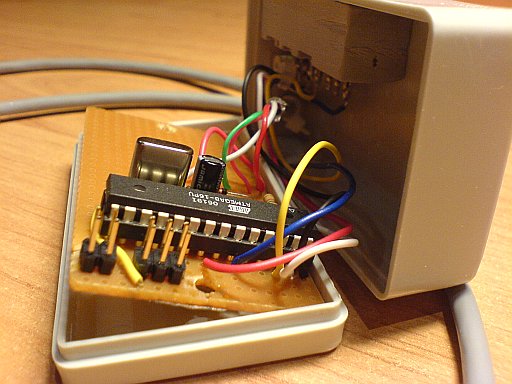

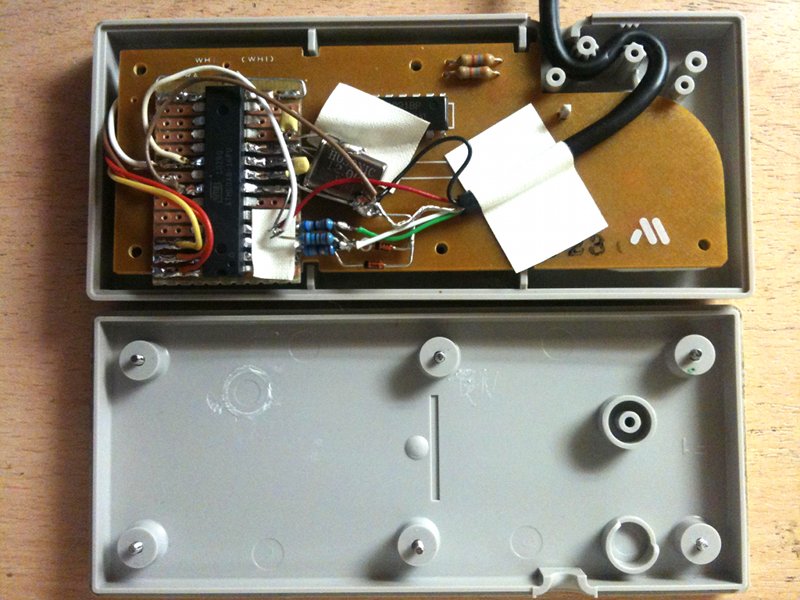

Here is an example of a Famicom controller 2 converted to USB. Not much space is available in the enclosure (less than in a NES controller)... Some plastic had to be cut away for the PCB to fit inside.
Inside

Inside

Inside

Inside

Inside

Inside

Development

Development

Does not fit

Does not fit

Fits

Fits

Fully wired.

Fully wired.




I found a full Famicom schematic on this japanese website. The controllers are on page 1, lower left.
http://green.ap.teacup.com/junker/116.html

Here is the color code for controller 2, from the schematic and confirmed in real life:
PinColorFunction
1 Brown Microphone output
2 Red Gnd
3 Orange Data
4 Yellow Latch
5 White Clock
6 Blue 5 volt supply

goto top Up


Programming the microcontroller

A microcontroller is a component which must be programmed in order to do something useful. So here is the hexfile which must be uploaded to the microcontroller:
FileComments
nes_snes_db9_usb-1.9.hex
  • Special features added to support the Famicom controller with microphone. Wire the 'jumpers' in NES mode and short PC0 and PC1 together to use this new mode. Wire the extra input (PC2) for the microphone digital signal from the controller.
  • 3 button mappings implemented for the abovementionned Famicon mode.
  • Fixed the device name. (It would be corrupted or would not appear since the last few releases)
nes_snes_db9_usb-1.8.hex
  • TGFX has its own device name and VID/PID.
  • Added Sega Paddle support (HPD-200). Auto-detected in DB9 mode. If the circuit is installed inside the controller, the two buttons can be wired independently.
  • Controller polling synchronized with USB polls. Helps maintain an accurate timing when polling the controllers.
nes_snes_db9_usb-1.7.hex
  • Improved Genesis 6 button auto-detection
  • Mode button now usable on Genesis 6 button controllers
  • Sega multi-tap support (tested with MK-1654 only!)(technical info)
  • Added TGFX controller support
nes_snes_db9_usb-1.6.hex
  • Changed the button IDs. Atari and SMS controllers were using button 2 and 3. Some emulators require button 1 so....
  • Added a way to force 6 Button mode for genesis controllers. Just in case your 6 button controller is not detected. Hold 'start' when connecting the USB cable to use this feature.
nes_snes_db9_usb-1.5.hex
  • Added support for Genesis 3 and 6 button controllers.
  • All DB9 controllers (Genesis 3/6, SMS, Atari style 1 or 2 button and compatible) are auto-detected.
  • The wiring is now different for DB9 controllers. Easier to wire to the multiuse PCB.
  • NES controllers are now detected in SNES mode. This works great with original Nintendo controllers. If you have trouble with clones, use NES-only mode.
  • The project is now released under the GPL v2 license
snes_nes_atari_usb-1.4.hex
  • Added support for Atari style joysticks (Atari, Commodore, etc). Two button variations (eg: Sega Master System) are also supported.
  • Added padding to the nes report descriptor. This makes it work correctly on Windows. Linux sure is tolerant...
snes_nes_usb-1.3.hex
  • Fixed a bug which resulted in random button toggling when no controller was connected to the circuit.
  • NES mode now has it's own USB product ID.
  • PD1 is left in input (and no pull-up) since PD1 and PD0 must be shorted together in PCB rev.C (cleaner workaround than throwing away a batch of 50 PCBs and easier than cutting a track and soldering a wire...)
snes_nes_usb-1.2.hex Added Snes mouse support.
snes_nes_usb-1.1.hex Reworked the report descriptor for better behaviour under Windows and MacOS X
snes_nes_usb-1.0.hex Initial release.


Many microcontrollers have what is called 'Fuse bytes'. In the case of the ATmega8, there are two bytes: The high byte, and the low byte. Those bytes are used to configure some aspects of the microcontroller. What type of clock to use? Crystal? Resonator? Internal RC clock? Allow programming via ISP? It's very important to set the fuses to the right values. Using the wrong values can render your MCU unusable.

For this project, here are the appropriate fuse values:
high byte = 0xc9, low byte = 0x9f

For details about how to program an AVR, visit my AVR programming page.

goto top Up


Source code

For those who wish to modify the device behaviour or add support for new type of gamepads, here is the source code. Starting with version 1.5, it is released under the GPL v2 license. Previous version were released under the Objective Development license, which is basically GPL + extensions to cover hardware. See License.txt for more information.
FileComments
nes_snes_db9_usb-1.9.tar.gz
  • Special features added to support the Famicom controller with microphone. Wire the 'jumpers' in NES mode and short PC0 and PC1 together to use this new mode. Wire the extra input (PC2) for the microphone digital signal from the controller.
  • 3 button mappings implemented for the abovementionned Famicon mode.
  • Fixed the device name. (It would be corrupted or would not appear since the last few releases)
nes_snes_db9_usb-1.8.tar.gz
  • TGFX has its own device name and VID/PID.
  • Added Sega Paddle support (HPD-200). Auto-detected in DB9 mode. If the circuit is installed inside the controller, the two buttons can be wired independently.
  • Controller polling synchronized with USB polls. Helps maintain an accurate timing when polling the controllers.
nes_snes_db9_usb-1.7.tar.gz
  • Improved Genesis 6 button auto-detection
  • Mode button now usable on Genesis 6 button controllers
  • Sega multi-tap support (tested with MK-1654 only!) (technical info)
  • Added TGFX controller support
nes_snes_db9_usb-1.6.tar.gz
  • Changed the button IDs. Atari and SMS controllers were using button 2 and 3. Some emulators require button 1 so....
  • Added a way to force 6 Button mode for genesis controllers. Just in case your 6 button controller is not detected. Hold 'start' when connecting the USB cable to use this feature.
nes_snes_db9_usb-1.5.tar.gz
  • Added support for Genesis 3 and 6 button controllers.
  • All DB9 controllers (Genesis 3/6, SMS, Atari style 1 or 2 button and compatible) are auto-detected.
  • The wiring is now different for DB9 controllers. Easier to wire to the multiuse PCB.
  • NES controllers are now detected in SNES mode. This works great with original Nintendo controllers. If you have trouble with clones, use NES-only mode.
  • The project is now released under the GPL v2 license
nes_snes_usb-1.4.tar.gz
  • Added support for Atari style joysticks (Atari, Commodore, etc). Two button variations (eg: Sega master system) are also supported.
  • Added padding to the nes report descriptor. This makes it work correctly on Windows. Linux sure is tolerant...
nes_snes_usb-1.3.tar.gz
  • Fixed a bug which resulted in random button toggling when no controller was connected to the circuit.
  • NES mode now has it's own USB product ID.
  • PD1 is left in input (and no pull-up) since PD1 and PD0 must be shorted together in PCB rev.C (cleaner workaround than throwing away a batch of 50 PCBs and easier than cutting a track and soldering a wire...)
nes_snes_usb-1.2.tar.gz Added SNES mouse support.
nes_snes_usb-1.1.tar.gz Reworked the report descriptor for better behaviour under Windows and MacOS X
nes_snes_usb-1.0.tar.gz Initial release. Snes and Nes support.

Please contact me at raph@raphnet.net if you do useful changes.

Objective Development driver modifications:
The NES/SNES mode selection jumper changes the HID report descriptor. I had to modify Objective Development's usb driver to support this. Here is a diff against the usb driver from HIDKeys.2006-03-14:
usbdrv-diff

USB Vendor ID/Product ID pair:
Please do not re-use my VID/PID pair for derived or other projects. Instead, get your own. I bought my VID/PID pairs from mecanique, and they are much less expensive than the 2000$ US it cost to get a vendor ID from the usb implementers forum.

goto top Up


Printed Circuit Board for surface-mount version

revC pcb The surface mount version has many advantages: On the other hand, soldering surface mount components is harder if you dont have appropriate equipment or if you are a beginner.

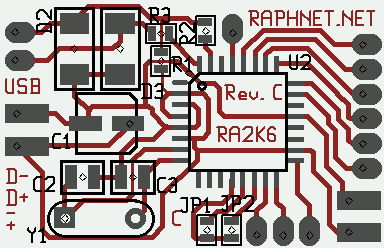

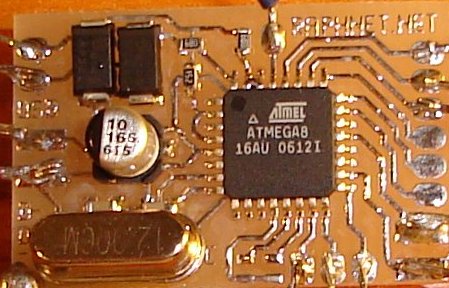

Here is a composite view of the PCB rev.C:
rev.C composite image

For reference, here is the composite view of rev.B: snes_nes_usb_pcb_revB.png
Here are the gerber files you can use to build your PCB(s):
Revision C: snesusb_revC.zip
Revision B: snes_nes_usb_PCB-revB.zip

goto top Up


Assembly of the surface-mount version

Step 1: Use the composite view, the schematic and component list to find out where each component goes. Solder everything in place and inspect the board carefully for solder bridges. IMPORTANT: Do a solder bridge between PD1 and PD0 (see schematic).

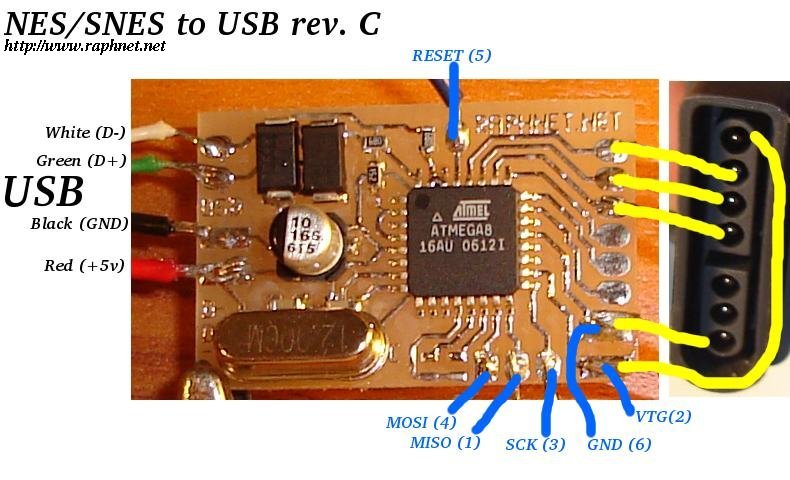

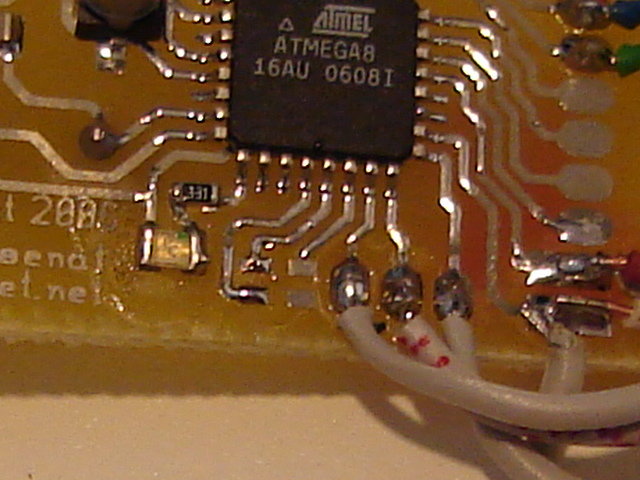

snes wiring Step 2: Use the appropriate diagram on the left to solder the USB, ISP and controller/joystick wires at the right places. The ISP cable can be built with a 2x3 header and a piece of flat cable. Pin numbers on diagram matches the standard atmel 6 pin AVR ISP.

Step 3: If you will be using a NES gamepad, close JP1 with a solder bridge or a small piece of wire. For DB9 gamepads, close JP1 and JP2. Refer to the pictures on the right for examples.

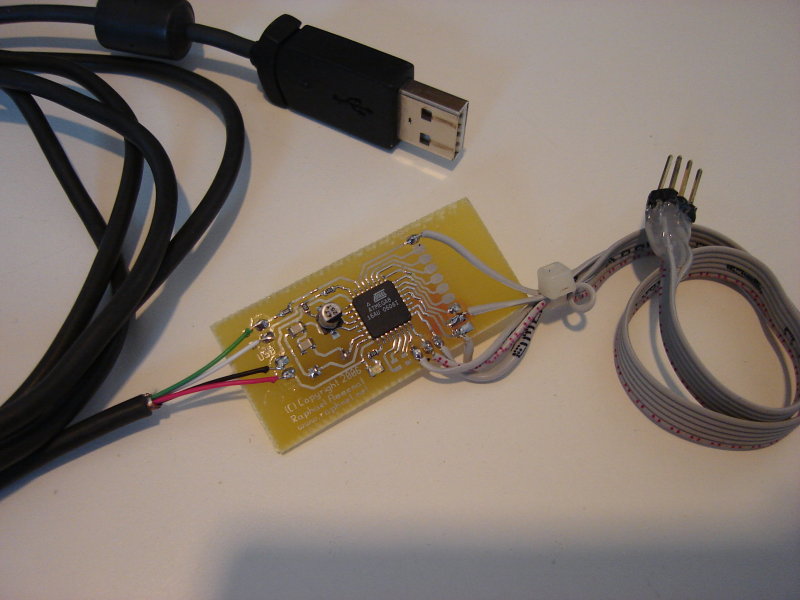

Step 4: Connect the USB and ISP cables. Use you programmer to program the hexfile into the ATmega8. Next, set the fuses bytes (High byte=0xc9, low byte=0x9f).

Step 5: Test the adapter with a game. If all works well, you can remove the ISP cable if you dont plan to update the firmware. Now find a way to protect the PCB. You can fit it inside a little box, a piece of PVC pipe or a heat-shrink. Also, adding hot glue near the wires you soldered on the PCB will prevent the wires from breaking near the solder points.

Step 6: Have fun!

goto top Up


Pictures and screenshots

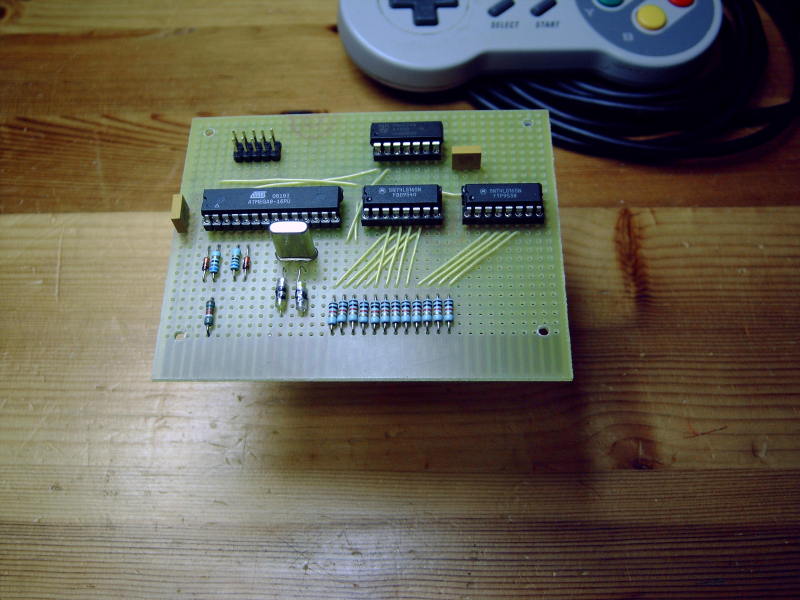

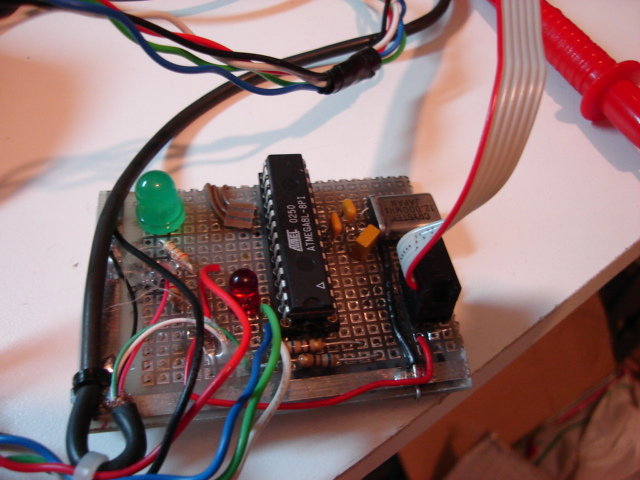

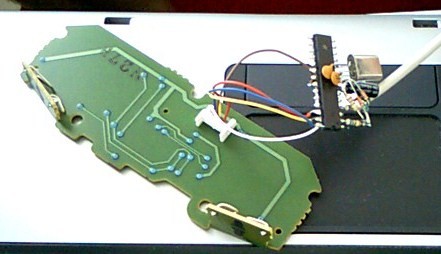

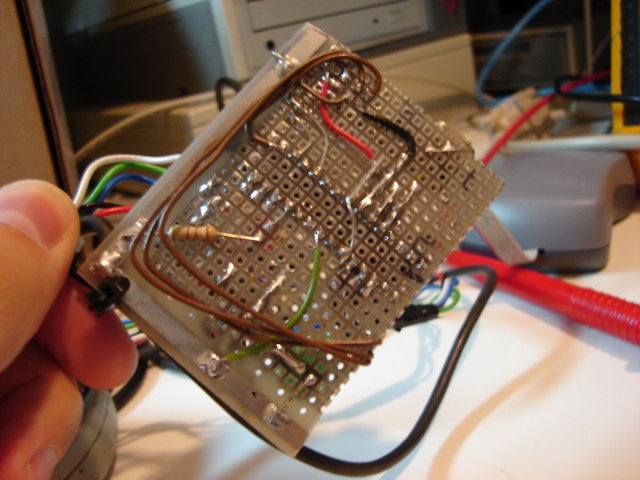

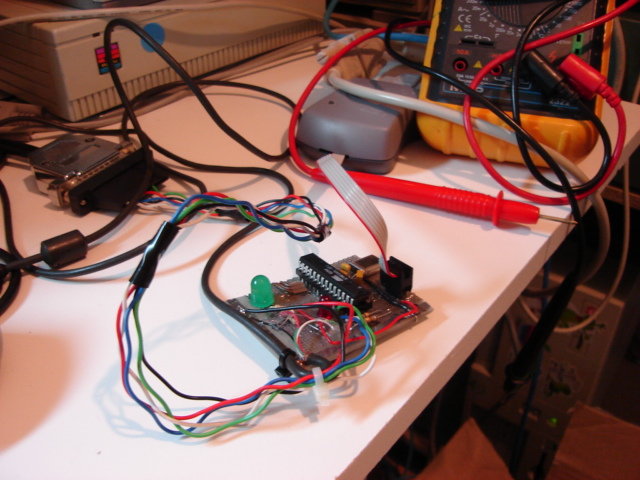

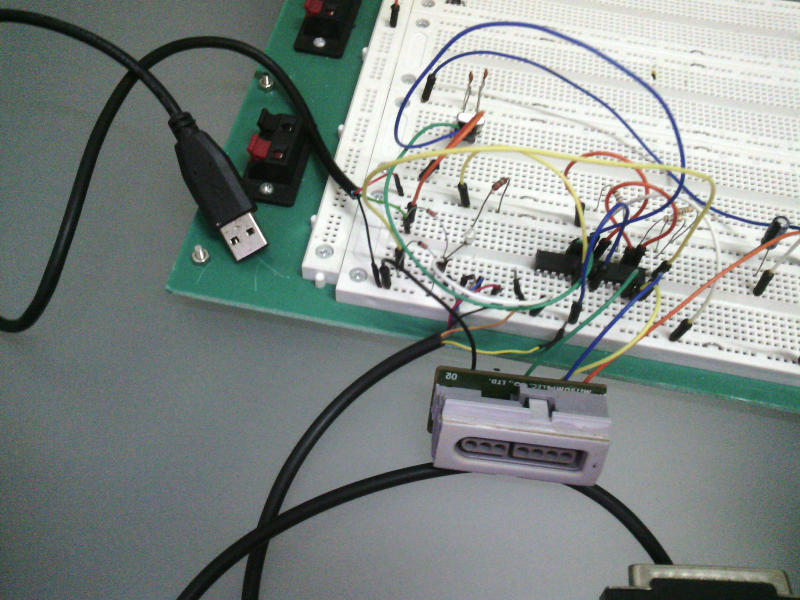

My first prototype, built on breadboard with thru-hole components:

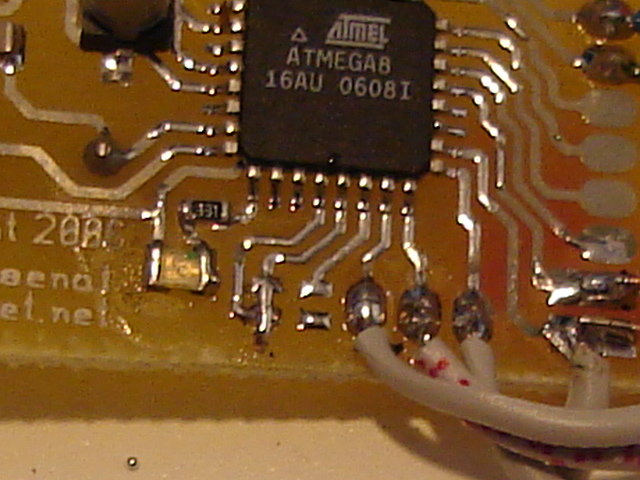

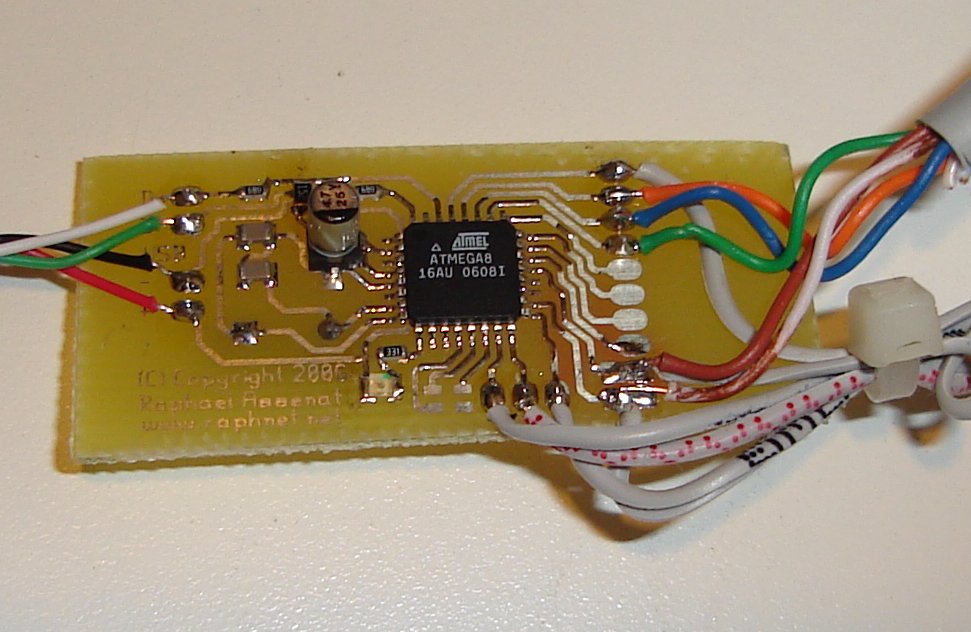

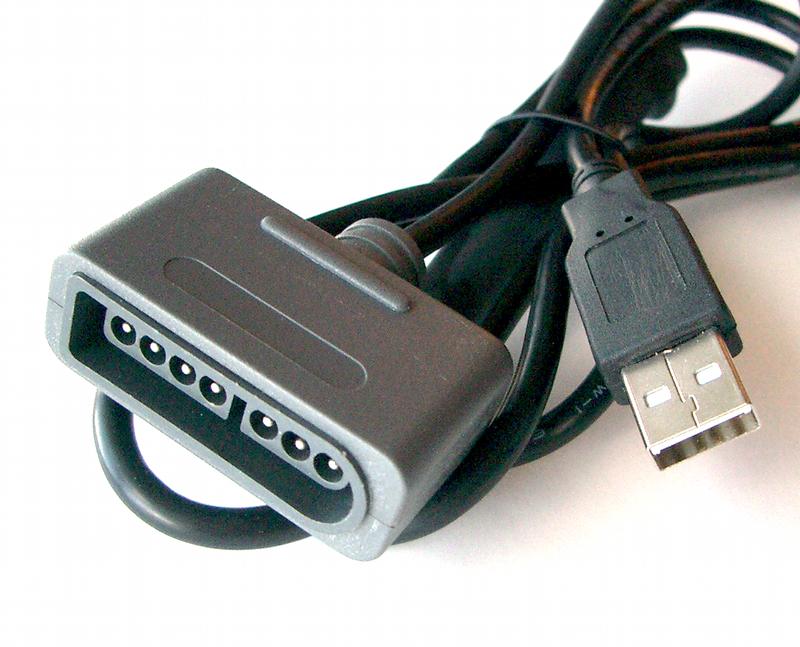

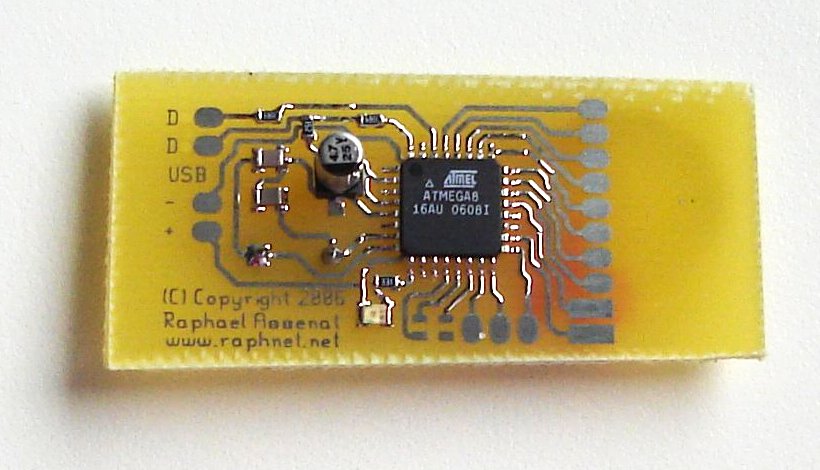

Pictures of the surface mount version:

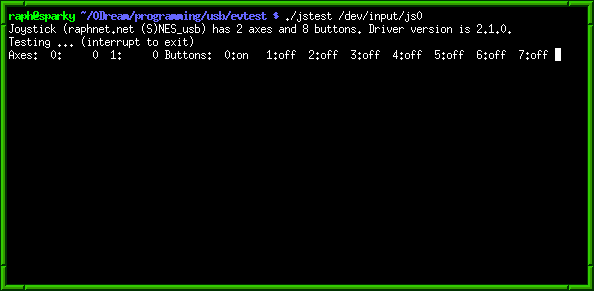

Screenshot of the adapter working under Linux (jstest):

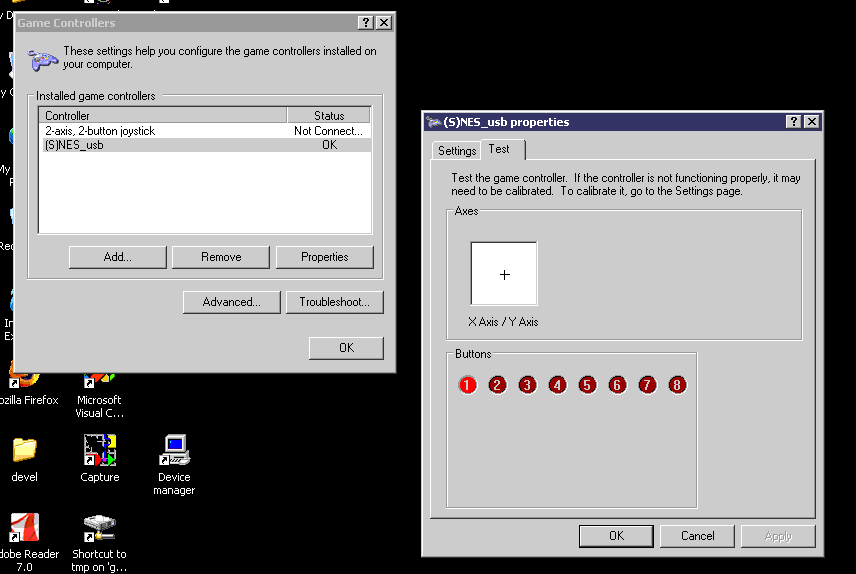

Screenshot of the adapter working under Windows XP (Control panel):


Screenshot of the adapter working under MacOS X (USB Prober):

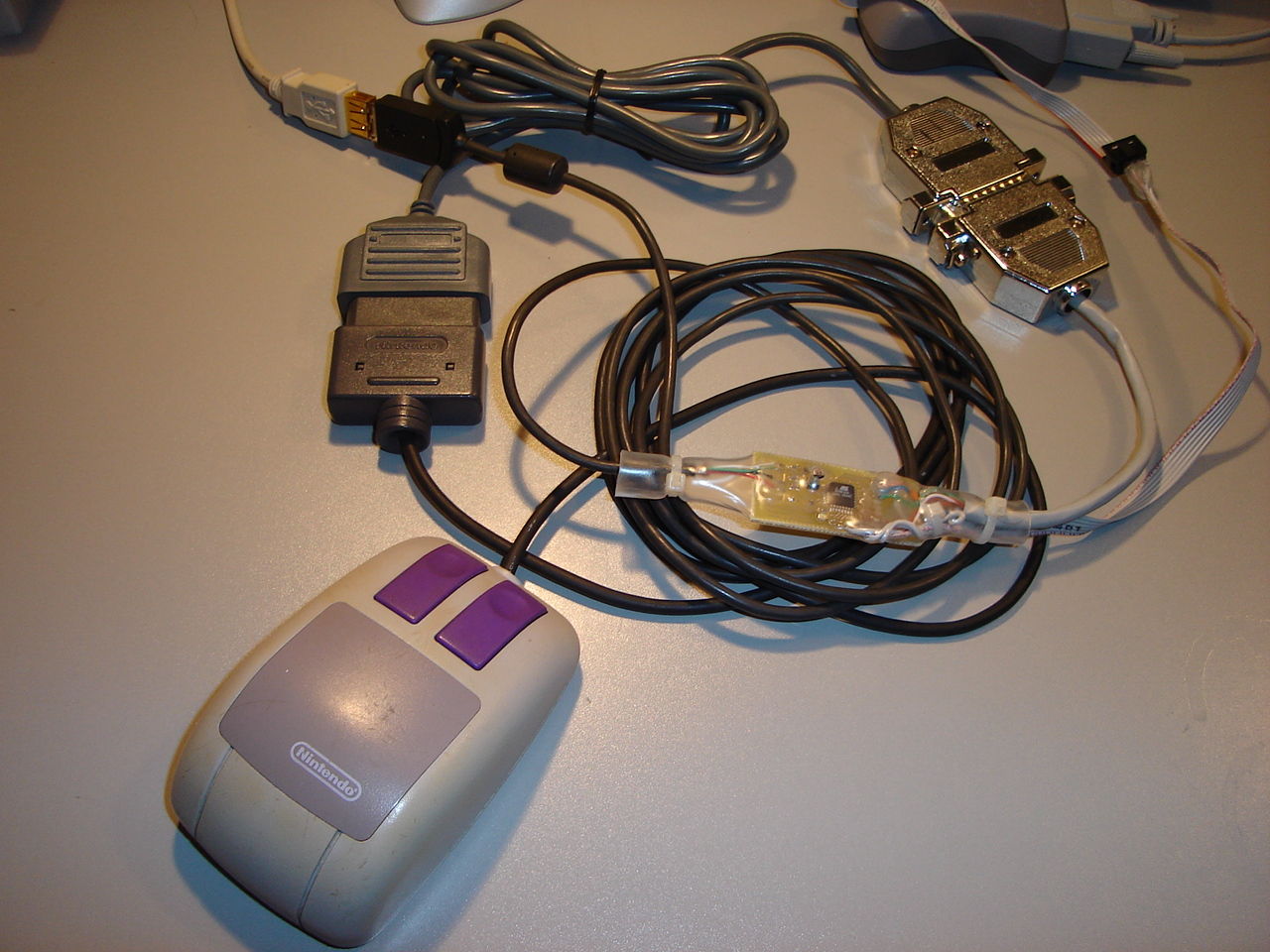

USB SNES mouse:

goto top Up


Pictures from users

I like to see how others build this project. Please send me your pictures and I will put some of them here.

29 Janvier 2014
Josafá Siqueira from Brazil sent me the following pictures of an adapter he built:

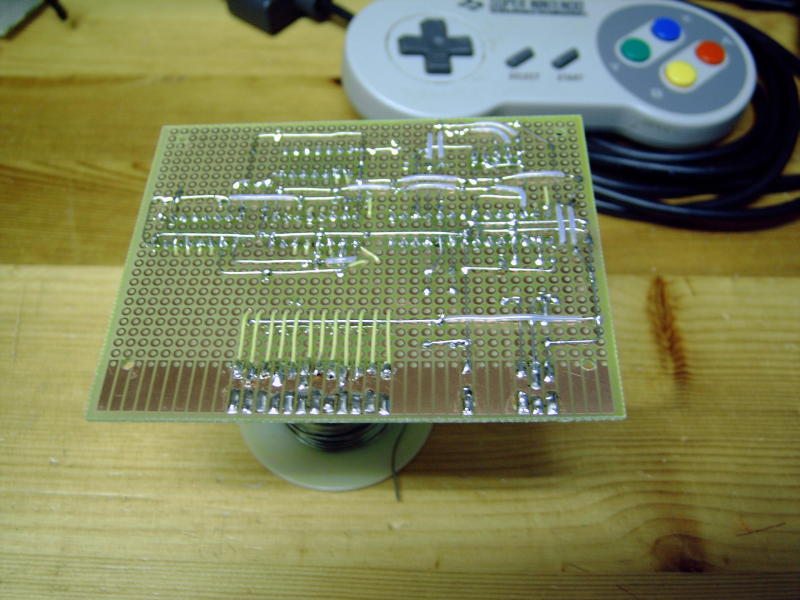

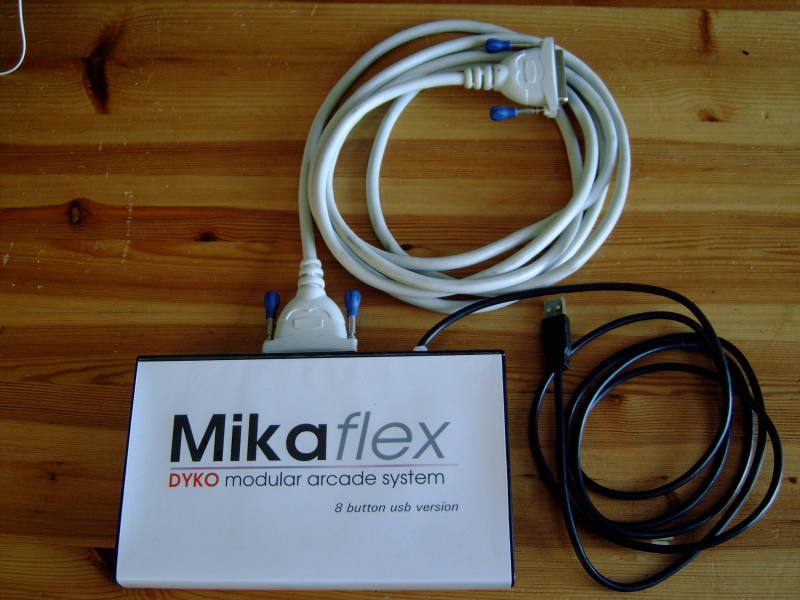

Tjerk Kuperus build this project and my my arcade style controller for SNES on a single board:

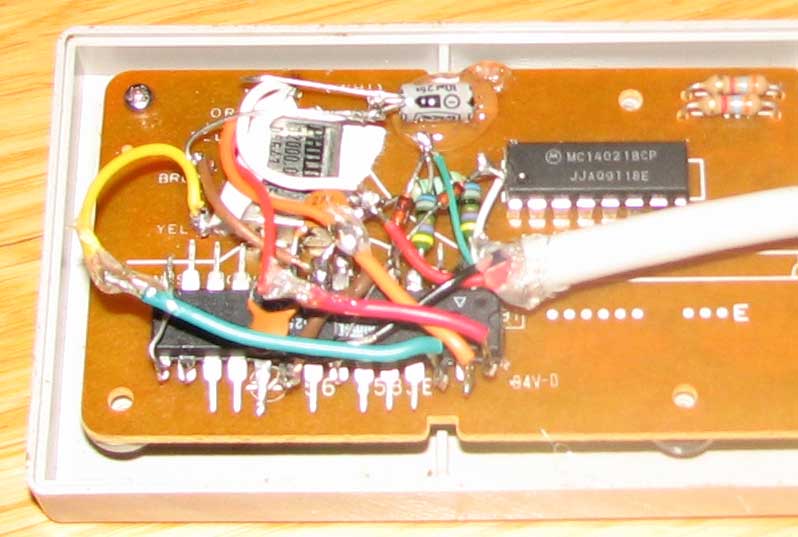

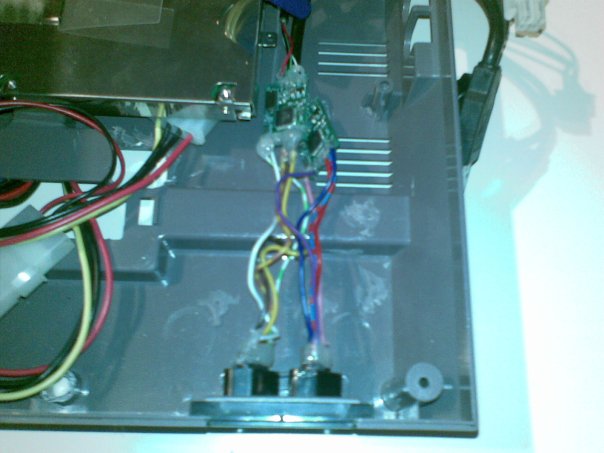

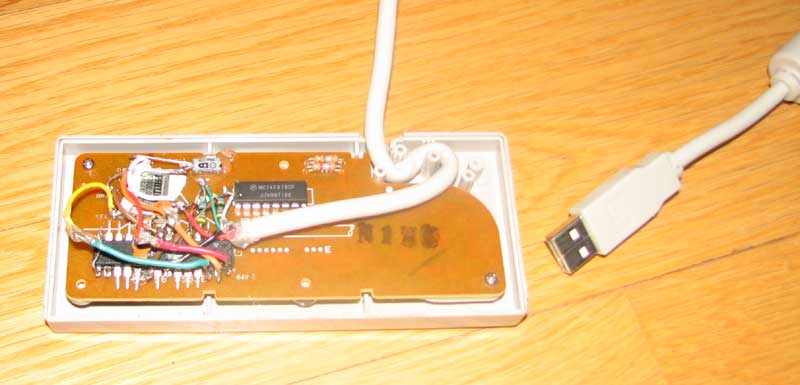

Andreas Kronawetter, from Austria, built the circuit inside a NES controller:

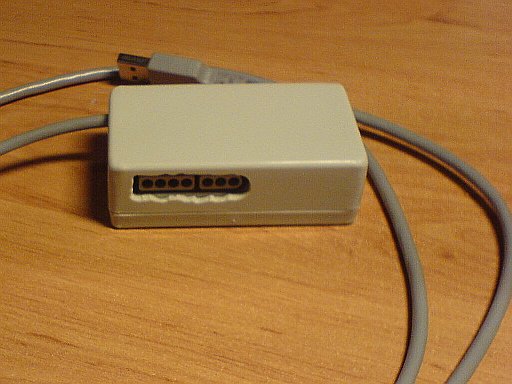

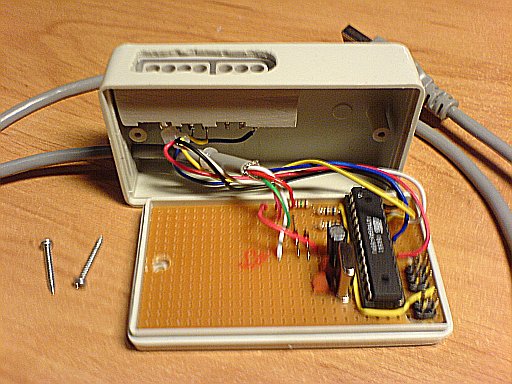

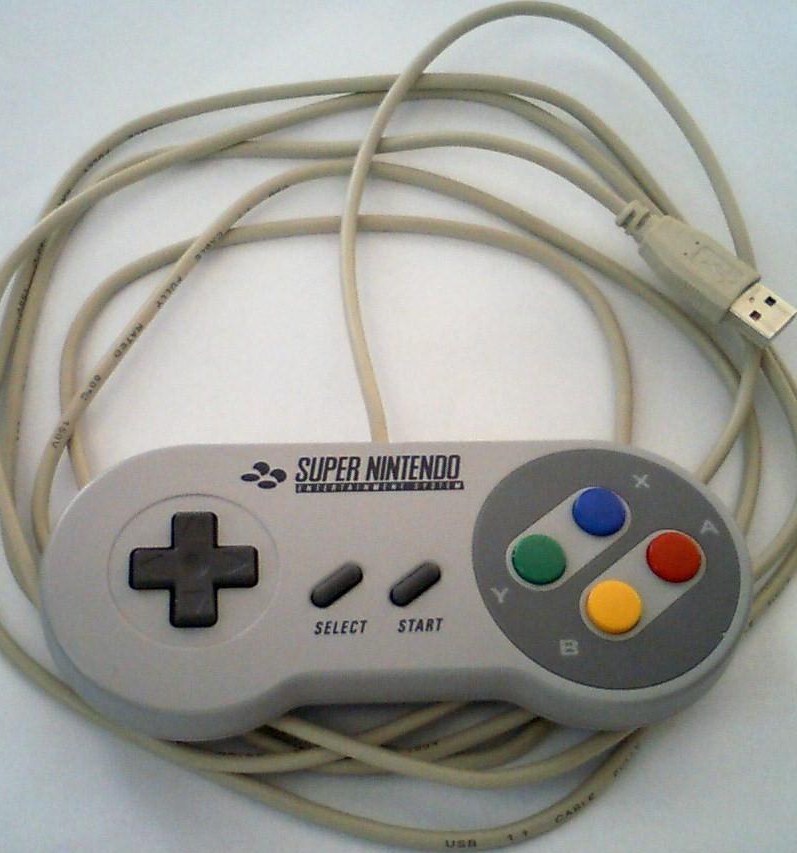

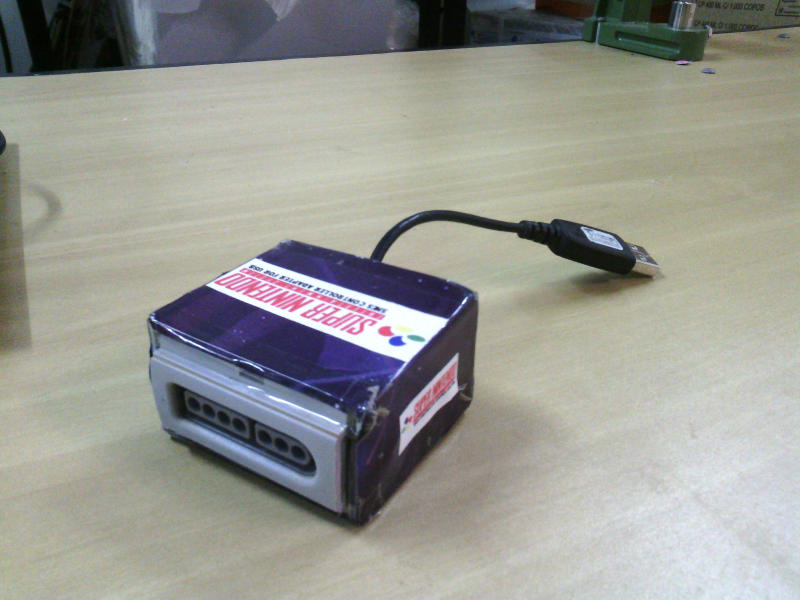

JP from the Netherlands built an USB SNES controller:



Michael Herzog converted a NES controller::

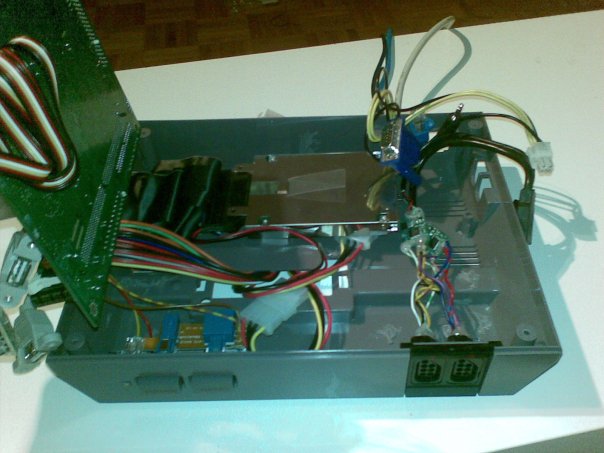

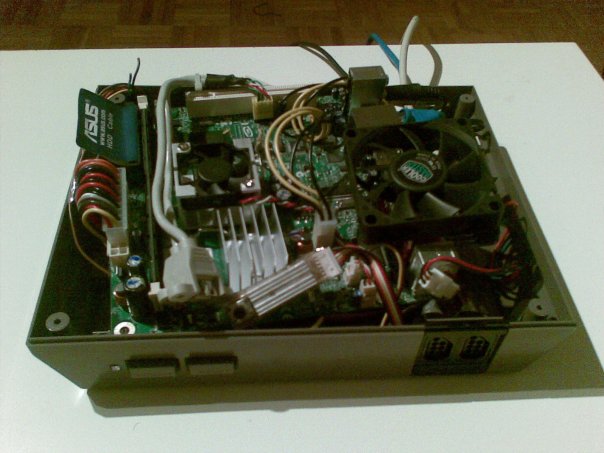

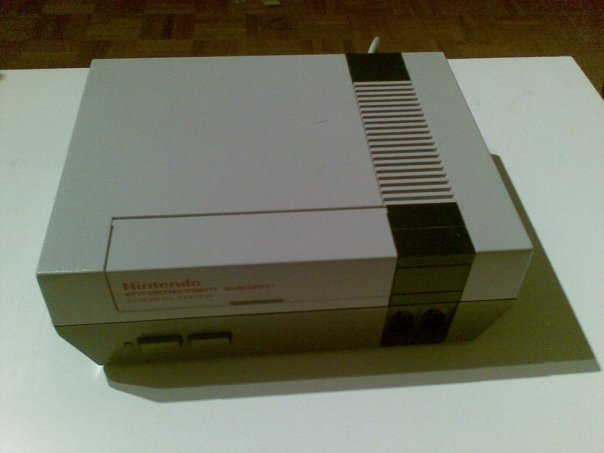

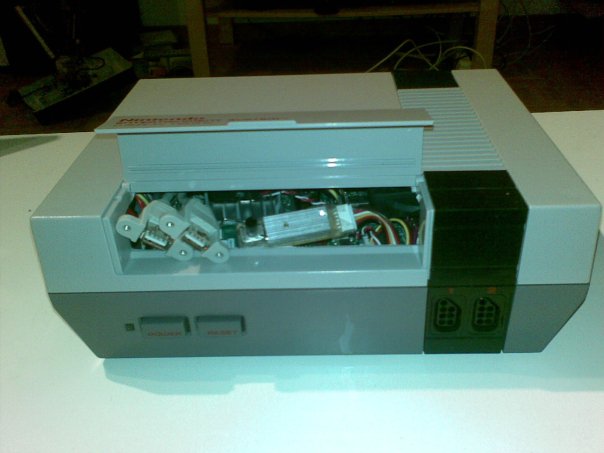

Philip Buchegger built this nice computer in a NES case and used this circuit to convert the two controller ports to USB:

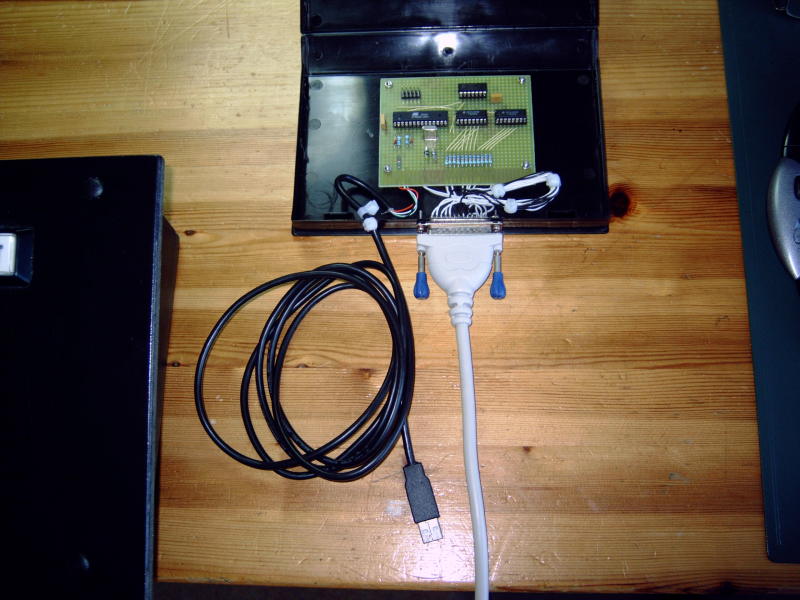

Tobias Schulte, from Germany, sent me those pictures:



goto top Up


Disclaimer

I cannot be held responsible for any damages that could occur to you or your equipment while following the procedures present on this page. Also, I GIVE ABSOLUTELY NO WARRANTY on the correctness and usability of the informations on this page. Please note, however, that the procedures above have worked in my case without any damages or problems.

Now you cannot say that I did not warn you :)
