Multiuse PCB3: A simple PCB with many uses

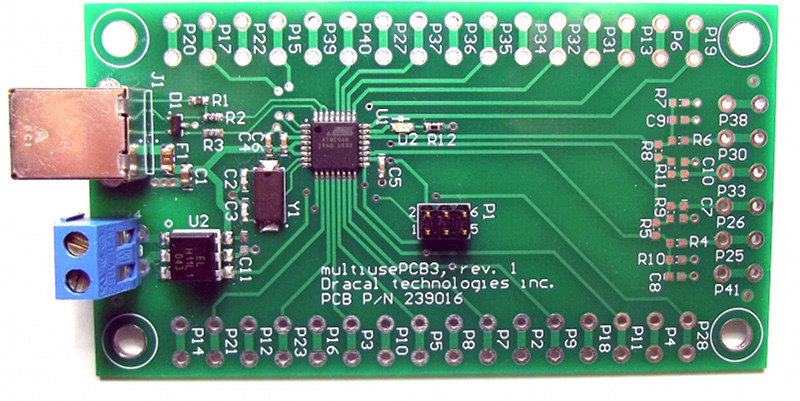

Overview

This is a design based on the Atmel Atmega8a meant to be used with the V-USB driver. Most of the MCU inputs/outputs pins are exposed.

Specifications:
  • The footprint used to expose signals is compatible with many terminal blocks and with quickconnect tabs. Otherwise, it is easy to solder wires directly to the board.
  • One optically isolated input can be populated.
  • On-board USB Type B standard connector.
  • One on-boad LED for feedback controlled by the microcontroller.
  • Components required for V-USB operation are present.
  • On-boad activity LED.



Uses

Here is a short list of some projects using this circuit:


Schematic

No yet available.


Gerbers

No yet available.


Disclaimer

I cannot be held responsible for any damages that could occur to you or your equipment while following the procedures present on this page. Also, I GIVE ABSOLUTELY NO WARRANTY on the correctness and usability of the informations on this page. Please note, however, that the procedures above have worked in my case without any damages or problems.

Now you cannot say that I did not warn you :)
